產(chǎn)品說明：

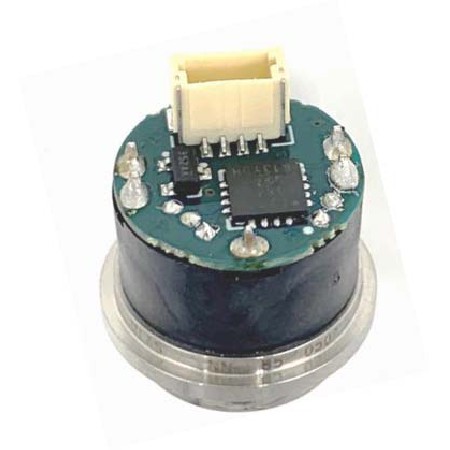

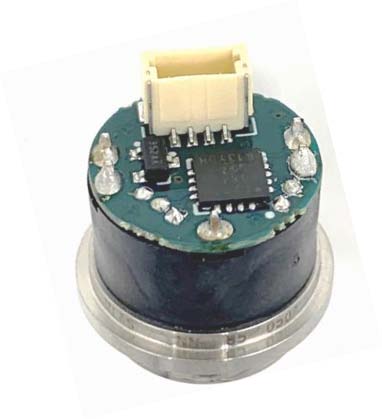

        This series of products is composed of a 316L stainless steel housing packaged ultra-stable piezoresistive silicon pressure sensor, a signal compensation PCBA which includes an ultra-low power 24bits ΔΣ ADC with internal factory calibrated coefficients and a MCU with TE self-developed computing program.

        It provides a precise digital pressure and temperature signal. A high-resolution temperature output allows the implementation of a pressure/ temperature function without any additional sensor.

        It also supports different operation modes that allow the user to optimize for conversion speed and current consumption.

        Each model was calibrated by ASIC and MCU in factory. it has been compensated offset, span, non-linearity of the measure pressure and temperature signal.

        TE provided the support to customize I2C communication protocol.

技術指標：

類       型：表壓、絕壓

量       程：1~500psi

精  確  度：±0.2%

輸       出：I2C （24位）

供電電源：2.5～3.6VDC

電氣連接：PCB焊接

工作溫度：-20℃～85℃

特       點：低功耗，高精度焊接法蘭或O型圈密封安裝

典型應用：醫(yī)療設備，過程控制，壓力變送器，液壓控制，電子音量校正器（EVC），OEM設備
